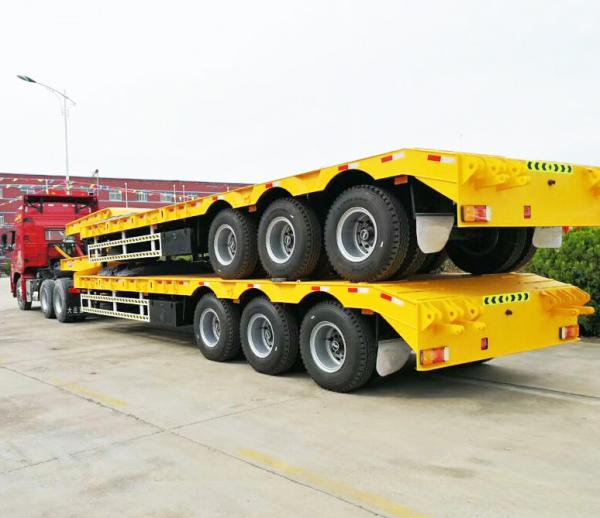

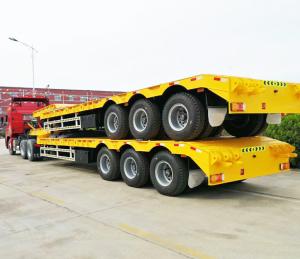

Heavy Machine Carrier Low Loader Gooseneck Truck Trailer

Brand Name : AOTONG

Certification : ISO CCC

Place of Origin : China

MOQ : 1 unit

Payment Terms : T/T

Delivery Time : 20 days

Condition : New

Suspension : Mechanical or Air suspension

Hs Code : 87163990

Axle Number : 2-5 Axles

Type : Semi-Trailer

Rim : 9.0*22.5 / 8.0-20 / 8.5-20

Usage : Heavy Equipment Machinery Transport

Payload : 40-100 Tons

Contact Now

Features:


1.The whole body adopts steel with good quality, and be manufactured by advanced skills and strict producing managerial processes.

2.The frame is wearing structure, webs made from manganese plates from 400mm to 550mm high welded the upper and lower flangeplates together, and the beam runs through the longitudinal beam makes the two parts a very strong unit by automatic submerged arc welding. Frame using peen-forming processing.


Specifications:

Model LAT9502TDP LAT9503TDP LAT9504TDP LAT9505TDP
Axles No. 2 lines 4 axles 3 lines 6 axles 4 lines 8 axles 5 lines 10 axles
Pay load 60-80tons 80-120tons 100-160tons 100-200tons
Tires 16pcs 24pcs 32pcs 40pcs
Rims 16pcs 24pcs 32pcs 40pcs
Size Optional
Main beam Heavy duty Double I beam.
Side beam 500mm I beam
Plate 5mm checked plate
Ladder Mechanical spring ladder or hydraulic ladder
Suspension Rigid suspension
Kin pin 2’’/3.5’’ bolt type
Landing gear 40 Ton two speed
Braking system Double air chamber ,brake valve,45L air tanks ;ABS optional
Electrical LED light , 7 ways ,24V
Painting Blasting and clean rust,1 coat of prime painting ,2 coat of finish painting


Heavy Machine Carrier Low Loader Gooseneck Truck Trailer


Heavy Machine Carrier Low Loader Gooseneck Truck Trailer

Heavy Machine Carrier Low Loader Gooseneck Truck Trailer


Heavy Machine Carrier Low Loader Gooseneck Truck Trailer

Heavy Machine Carrier Low Loader Gooseneck Truck Trailer
