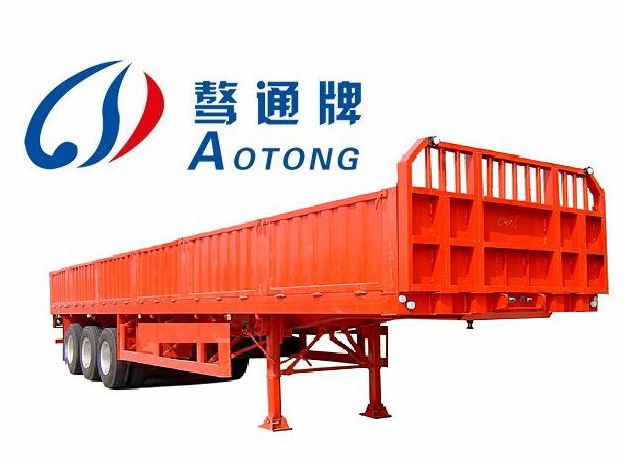

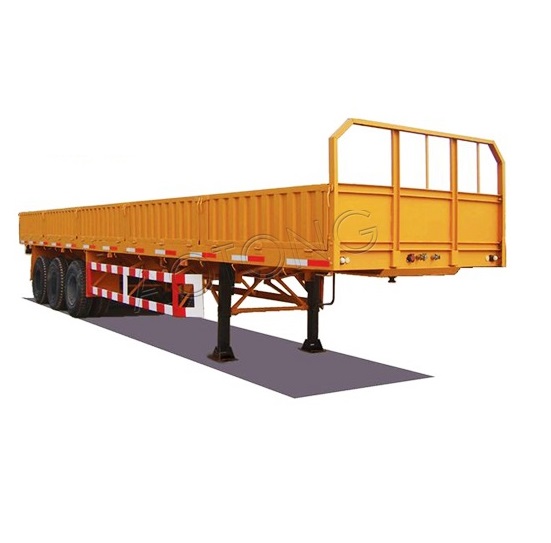

Detachable Sidewall Semi Trailer with 2''/3.5'' Bolt Type Kin Pin and 50000KG Max Payload

Use : Truck Trailer

Type : Semi-Trailer

Material : Steel

Size : 12500*2500*1500 (mm)

Max Payload : 50000KG

Place of Origin : CHINA

Brand Name : AOTONG

Axles : FUWA BPW etc

Suspension : Mechanical suspension

Tire : 12R22.5

Kin pin : 2''/3.5'' bolt type

Landing gear : 28 Ton two speed

Braking system : Dual line braking system

Color : Customers Optional

Condition : Brand new

Usage : Bulk Cargo Transport

Certification : ISO,CCC

MOQ : 1 UNIT

Price : $13,000.00/pieces >=3 pieces

Packaging Details : Exporting Standard

Delivery Time : 25 days

Payment Terms : TT

Contact Now

Product Description
Detachable Sidewall Semi Trailer with 2''/3.5'' Bolt Type Kin Pin and 50000KG Max Payload
Detachable Sidewall Semi Trailer with 2''/3.5'' Bolt Type Kin Pin and 50000KG Max Payload
Side Wall Semi Trailer：
Suitable for the mid/long distance transportation of the mid/heavy duty and bulk cargo
The max height of the rear guard from ground is 550mm,and the cross section is 140mmx55mm
The whole body adopts steel with good quality, and be manufactured by advanced skills and strict producing managerial processes.

The frame is wearing structure, webs made from manganese plates from 400mm to 550mm high welded the upper and lower flangeplates together, and the beam runs through the longitudinal beam makes the two parts a very strong unit by automatic submerged arc welding.

Frame using peen-forming processing.
Specification
Size
12500*2500*1500 (mm)
OE NO.
LAT9280
Max Payload
50000KG
Cross beam
160mm
Plate
checked plate or flat plate
Axles
3 * 13ton capacity
Suspension
Mechanical suspension
Leaf spring
10pcs
Tire
12R22.5
Rim
9.00-22.5
Kin pin
2''/3.5'' bolt type
Landing gear
28 Ton two speed
Braking system
Double air chamber ,brake valve,40L air tanks ;ABS optional
Detachable Sidewall Semi Trailer with 2''/3.5'' Bolt Type Kin Pin and 50000KG Max Payload
Detachable Sidewall Semi Trailer with 2''/3.5'' Bolt Type Kin Pin and 50000KG Max Payload
Packing & Delivery
Detachable Sidewall Semi Trailer with 2''/3.5'' Bolt Type Kin Pin and 50000KG Max Payload
Company Profile
Detachable Sidewall Semi Trailer with 2''/3.5'' Bolt Type Kin Pin and 50000KG Max Payload
Detachable Sidewall Semi Trailer with 2''/3.5'' Bolt Type Kin Pin and 50000KG Max Payload
Shandong Juyuan Automobile Technology Co., Ltd., is a professional manufacturer of varies types of semi trailers established in 1992 with almost 30 years experience and well-equipped testing facilities and strong technical force.

With advanced and proven technique in design, exploitation and production, our products with the brand "Aotong" are widely sold to countries all over the world with good reputation, enjoying high popularity in America, the Middle East, Africa, Southeast Asia and Russia, specially get good feedback from Kenya, Tunisia, Saudi Arabia, the Philippines, Myanmar, Vietnam, Thailand, Bangladesh, Tanzania, mozambique, Congo, Nigeria, Russia, etc. .

Now we provide more than 60 types of trailers and also our trailers can be customized according to your specifications and design drawings. You are warm welcome to contact us and we are ready for you!!!
FAQ
1. How do you make the shipment?
We will transport the trailers by bulk or cotainer,we have possess longterm cooperation with ship agency who can provide you lowest shipping fee.

 2. Can you satisfy my special requirement?
Sure! We are direct manufacturer with 30 years experience and we have strong producing capacity and R&D capacity.

3. How can you guarantee quality?
Our raw material and OEM parts including axle, suspension,tyre are purchased centralized by ourselves,every part will be inspected strictly.Moreover,advanced equipment rather than only worker is been applied during the whole producing process to ensure the welding quality.

 4. Can I have samples of this type of trailer to test the quality?
Yes, you can buy any samples to test the quality,our MOQ is 1 set.
Why Choose Us
Top Manufacturers for good quality semi trailers.
1.Almost 30 years manufacturing experiences provide qualified truck trailers & competitive price.
2.Experienced Design & QC team, strict quality control.CCC,ISO,SGS,BV agree
3.Customized a variety of semi trailer required by customers. Well designed ,small order accept.
4.Manufacture according to your detailed requirements
5.After-sale-support,6 month guarantee term
Other Products and Certifications
Detachable Sidewall Semi Trailer with 2''/3.5'' Bolt Type Kin Pin and 50000KG Max Payload
Different Kinds Of Semi Trailer
We have lowbed semi trailers, container flatbed and skeleton semi trailers, fence semi trailers, animal transport semi trailers,car vehicle carrier semi trailers, van semi trailers, tanker semi trailers, dump truck semi trailers, modular semi trailers and full trailer series, etc.
