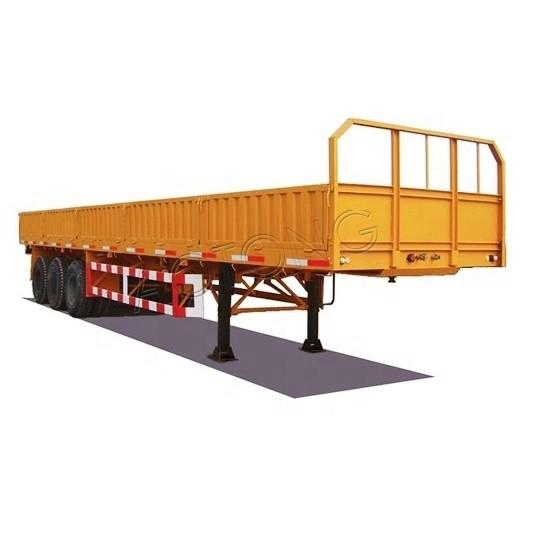

3 * 13ton Capacity Axles Side Wall Semi Trailer for Dry Cargo or Sands Transportation

Use : Truck Trailer

Type : Semi-Trailer

Material : Steel

Size : 12500*2500*1500 (mm)

Max Payload : 50000KG

Place of Origin : CHINA

Brand Name : AOTONG

Side board height : 600-2200 optional

Main beam : Heavy duty I beam.

Cross beam : 160mm

Axles : 3 * 13ton capacity

Suspension : Mechanical suspension

Leaf spring : 10pcs

Twist locks : Optional

Braking system : Double air chamber ,brake valve,40L air tanks ;ABS optional

Electrical : LED light , 7 ways ,24V

OE NO. : LAT9280

Packaging Details : Exporting Standard

Port : Qingdao

Supply Ability : 300 Set/Sets per Month

Price : $13,000.00/sets 1-9 sets

Certification : ISO,CCC

MOQ : 1 UNIT

Delivery Time : 25 days

Payment Terms : TT

Contact Now

Product Description
Side Wall Semi Trailer：Suitable for the mid/long distance transportation of the mid/heavy duty and bulk cargo.The max height of the rear guard from ground is 550mm,and the cross section is 140mmx55mm The whole body adopts steel with good quality, and be manufactured by advanced skills and strict producing managerial processes.

The frame is wearing structure, webs made from manganese plates from 400mm to 550mm high welded the upper and lower flangeplates together, and the beam runs through the longitudinal beam makes the two parts a very strong unit by automatic submerged arc welding.Frame using peen-forming processing.
3 * 13ton Capacity Axles Side Wall Semi Trailer for Dry Cargo or Sands Transportation
3 * 13ton Capacity Axles Side Wall Semi Trailer for Dry Cargo or Sands Transportation
3 * 13ton Capacity Axles Side Wall Semi Trailer for Dry Cargo or Sands Transportation
Specification
Model
LAT9280
Size
12500*2500*1500 (mm)
Side board height
600-2200 optional
Payload
50000KG
Main beam
Heavy duty I beam.
Cross beam
160mm
Plate
checked plate or flat plate
Axles
3 * 13ton capacity (Brand optional)
Suspension
Mechanical suspension (Air suspension optional)
Leaf spring
10pcs
Tire
12R22.5 12pcs (Other size optional)
Rim
9.00-22.5 12pcs (Other size optional)
Kin pin
2’’/3.5’’ bolt type
Landing gear
28 Ton two speed
Twist locks
optional
Braking system
Double air chamber ,brake valve,40L air tanks ;ABS optional
Electrical
LED light , 7 ways ,24V
Painting
Blasting and clean rust,1 coat of prime painting ,2 coat of finish painting
Packing & Delivery
3 * 13ton Capacity Axles Side Wall Semi Trailer for Dry Cargo or Sands Transportation
3 * 13ton Capacity Axles Side Wall Semi Trailer for Dry Cargo or Sands Transportation
Company Profile
3 * 13ton Capacity Axles Side Wall Semi Trailer for Dry Cargo or Sands Transportation
Shandong Juyuan Automobile Technology Co., Ltd., is a professional manufacturer of varies types of semi trailers established in 2001 with more than 16 years experience and well-equipped testing facilities and strong technical force.
With advanced and proven technique in design, exploitation and production, our products with the brand "Aotong" are widely sold to countries all over the world with good reputation, enjoying high popularity in America, the Middle East, Africa, Southeast Asia and Russia, specially get good feedback from Kenya, Tunisia, Saudi Arabia, the Philippines, Myanmar, Vietnam, Thailand, Bangladesh, Tanzania, mozambique, Congo, Nigeria, Russia, etc. .
Now we provide more than 60 types of trailers and also our trailers can be customized according to your specifications and design drawings. You are warm welcome to contact us and we are ready for you!!!
Other Products
3 * 13ton Capacity Axles Side Wall Semi Trailer for Dry Cargo or Sands Transportation
3 * 13ton Capacity Axles Side Wall Semi Trailer for Dry Cargo or Sands Transportation
FAQ
1. How do you make the shipment?
We will transport the trailers by bulk or cotainer,we have possess longterm cooperation with ship agency who can provide yo lowest shipping fee.
2. Can you satisfy my special requirement?
Sure! We are direct manufacturer with 20 years experience and we have strong producing capacity and R&D capacity.
3. How can you guarantee quality?
Our raw material and OEM parts including axle, suspension,tyre are purchased centralize by ourselves,every part will be inspected strictly.Moreover,advanced equipment rather than only worker is been applied during the whole producing process to ensure the welding quality.
4. Can I have samples of this type of trailer to test the quality?
Yes, you can buy any samples to test the quality,our MOQ is 1 set.
Customer Photos
3 * 13ton Capacity Axles Side Wall Semi Trailer for Dry Cargo or Sands Transportation
Why Choose Us
Top Manufacturers for good quality semi trailers.
1.Almost 20 years manufacturing experiences provide qualified truck trailers & competitive price.
2.Experienced Design & QC team, strict quality control.CCC,ISO,SGS,BV agree
3.Customized a variety of semi trailer required by customers. Well designed ,small order accept.
4.Manufacture according to your detailed requirements
5.After-sale-support,6 month guarantee term
