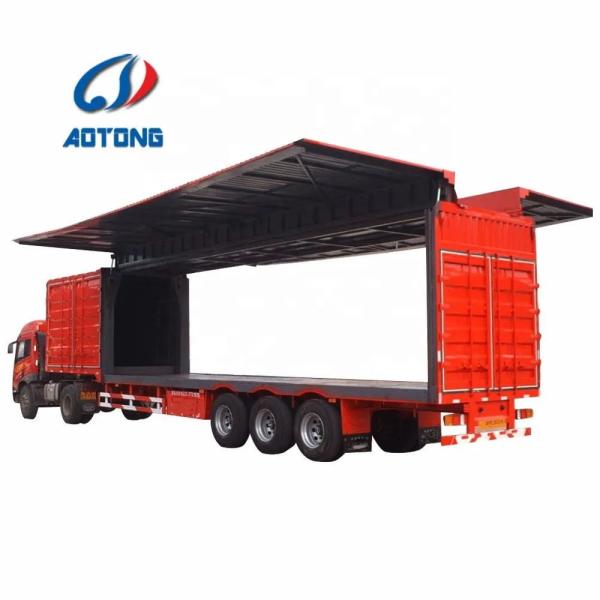

Tri-Axle Cargo Van Semi Trailer with and Optional Side or Rear Door Manufactured

Use : Truck Trailer

Type : Semi-Trailer

Material : Steel

Size : (12500-13000)*2500*1500 (mm)

Max Payload : 50000KG

Place of Origin : CHINA

Brand Name : AOTONG

Main beam : Heavy duty I beam.

Cross beam : 160mm

Plate : checked plate or flat plate

Door : Side door or rear door optional

Axles : 3 * 13ton capacity (Brand optional)

Suspension : Mechanical suspension (Air suspension optional)

Leaf spring : 10pcs

Tire : 12R22.5

Rim : 9.00-22.5

Kin pin : 2''/3.5'' bolt type

Price : $15,000.00/pieces >=1 pieces

Certification : ISO,CCC

MOQ : 1 UNIT

Delivery Time : 25 days

Payment Terms : TT

Contact Now

Product Description
Customize the semi trailer according to your requirements.Professional semi trailer manufacturer with more than 30 years of production experience serve for you AOTONG
Tri-Axle Cargo Van Semi Trailer with and Optional Side or Rear Door Manufactured
Type:
Van Semi Trailer/Trailer van/Box Semi Trailer
Dimension:
10000-13000*2550*3400 mm
Payload:
60,000 kgs
Tare weight:
Approx. 9,500 kgs
Main beam:
Material Q345. Fabricated “H” beam height 500mm, Top flange thickness 14mm, Middle web thickness 8mm, Bottom flange thickness 16mm
Side beam:
16# channel steel
Platform:
3mm thick checkered plate.
Side walls:
600-1800 mm height.
Kingpin:
JOST 2” Kingpin, bolted in type
Welding standard:
All welding are to be done by qualified welder per applicable national standard
Painting:
Complete Chassis sand blasting to clean rust, 1 coat of anti corrosive primer,
twice coats of final paint
Suspension:
Leaf spring or Air suspension
Axle:
FUWA/BPW 13 tons axles
Brake system:
Dual line pneumatic brake, with hose and connector
Brake chamber:
6 units T30/30 spring brake chambers
Air tank:
40L, 2 pcs, China
Emergency
relay valve:
WABCO/Shunanda relay valve
Tire:
12R22.5, 12 pcs.
Landing gear:
Standard 28T two speed telescopic manual landing gear
Electrical
Voltage:24V Receptacle: 7 ways (7 wire harness)
A full set of LED lights installed on the trailer, front rear side turning etc.
Spare wheel carrier
Two sets of spare wheel carrier
Accessory
One tooling box with a set of standard trailer tool
AOTONG van semi trailer can satisfy the concentrated force, the anti bump and the distortion resistance.
AOTONG make sure that van trailer can meet load requirements on different kind of roads and has a long service life.
Tri-Axle Cargo Van Semi Trailer with and Optional Side or Rear Door Manufactured
Tri-Axle Cargo Van Semi Trailer with and Optional Side or Rear Door Manufactured
Tri-Axle Cargo Van Semi Trailer with and Optional Side or Rear Door Manufactured
Tri-Axle Cargo Van Semi Trailer with and Optional Side or Rear Door Manufactured
Tri-Axle Cargo Van Semi Trailer with and Optional Side or Rear Door Manufactured
Tri-Axle Cargo Van Semi Trailer with and Optional Side or Rear Door Manufactured
Tri-Axle Cargo Van Semi Trailer with and Optional Side or Rear Door Manufactured
Tri-Axle Cargo Van Semi Trailer with and Optional Side or Rear Door Manufactured
Tri-Axle Cargo Van Semi Trailer with and Optional Side or Rear Door Manufactured
Tri-Axle Cargo Van Semi Trailer with and Optional Side or Rear Door Manufactured
Tri-Axle Cargo Van Semi Trailer with and Optional Side or Rear Door Manufactured
Tri-Axle Cargo Van Semi Trailer with and Optional Side or Rear Door Manufactured
Tri-Axle Cargo Van Semi Trailer with and Optional Side or Rear Door Manufactured
Tri-Axle Cargo Van Semi Trailer with and Optional Side or Rear Door Manufactured
Tri-Axle Cargo Van Semi Trailer with and Optional Side or Rear Door Manufactured
Tri-Axle Cargo Van Semi Trailer with and Optional Side or Rear Door Manufactured
Tri-Axle Cargo Van Semi Trailer with and Optional Side or Rear Door Manufactured
Tri-Axle Cargo Van Semi Trailer with and Optional Side or Rear Door Manufactured
Tri-Axle Cargo Van Semi Trailer with and Optional Side or Rear Door Manufactured
Tri-Axle Cargo Van Semi Trailer with and Optional Side or Rear Door Manufactured
AOTONG start from every detail, carefully craft to customize your high-quality semi trailer.
Tri-Axle Cargo Van Semi Trailer with and Optional Side or Rear Door Manufactured
Tri-Axle Cargo Van Semi Trailer with and Optional Side or Rear Door Manufactured
Excellent design ability
We have many experienced designers, according to your needs to develop the most reasonable design and meet your customized needs.
Click for your own design!
Tri-Axle Cargo Van Semi Trailer with and Optional Side or Rear Door Manufactured
